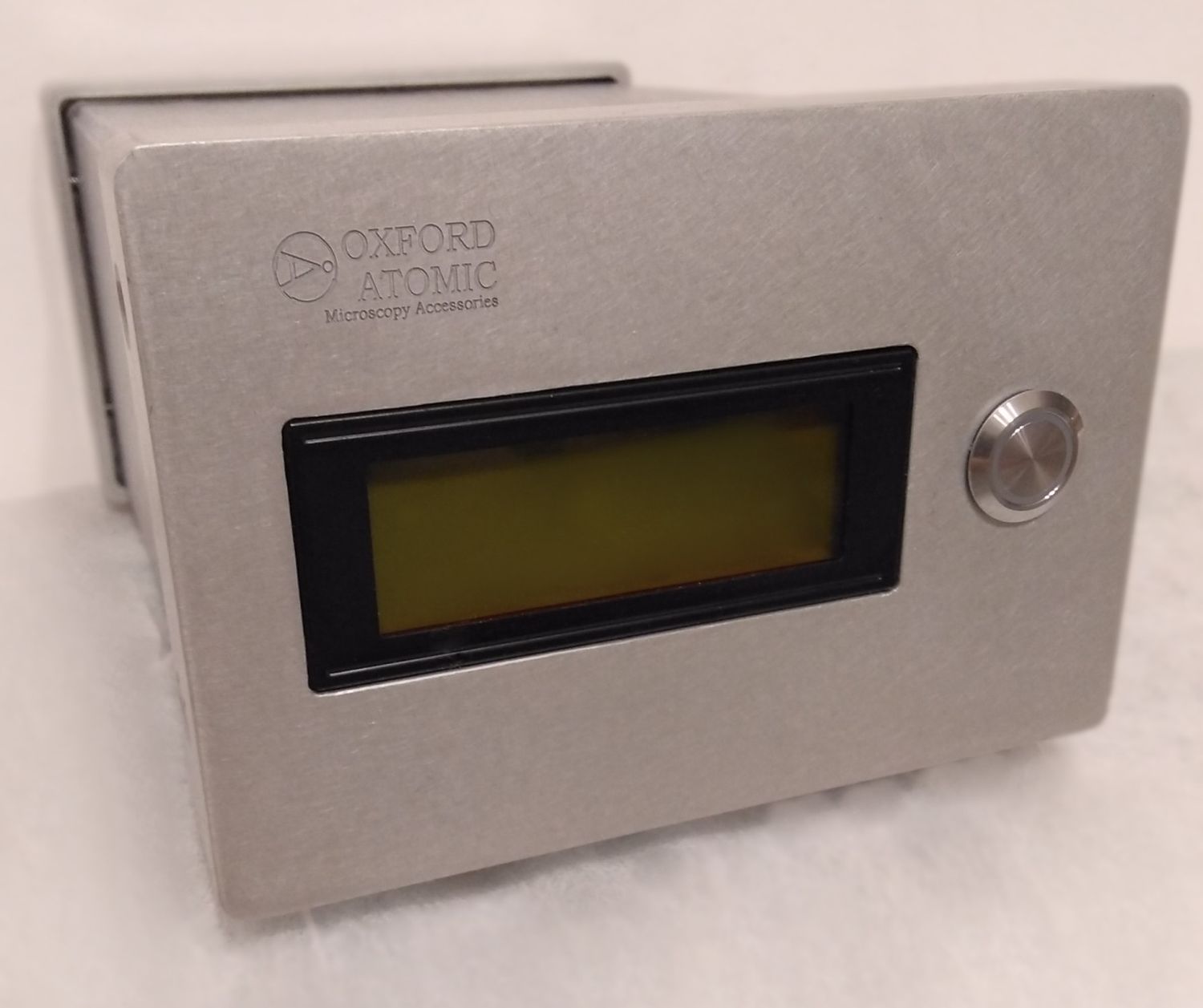

This unit controls is a single-press vacuum pumpdown unit, which enables controlling small 24V Pfeiffer pumps, such as the MVP-030 and HIPACE-10 series together, with Thyracont gauges (contact us for Pfeiffer gauge options).

The device is CE certified, and can be used either with turbopump and backing pump together, or solely with backing pumps. Gauge integration is strongly recommended, but the system will work without the gauge connection. Gauges and pumps not included.

Features:

* Single-touch pumpdown and vent-cycle

* Compact design permits use in small or areas with limited space.

* 110/240V compatible, 115 W max - suitable for two small pumps.

* Powers up to two pumps and 1 gauge. Digital communications via RS-485, compatible with Thyracont Smartline & Pfeiffer pump protocols.

* CE certified, for EU & UK. May be used in other regions per local regulations.

* Full metal enclosure for minimal interference and in harsh environments.

* DB25-bus allows for 2 pump connections and 1 gauge connection

* Easy readout LCD for continual vacuum status monitoring

* 1-Year warranty (Return to base)
